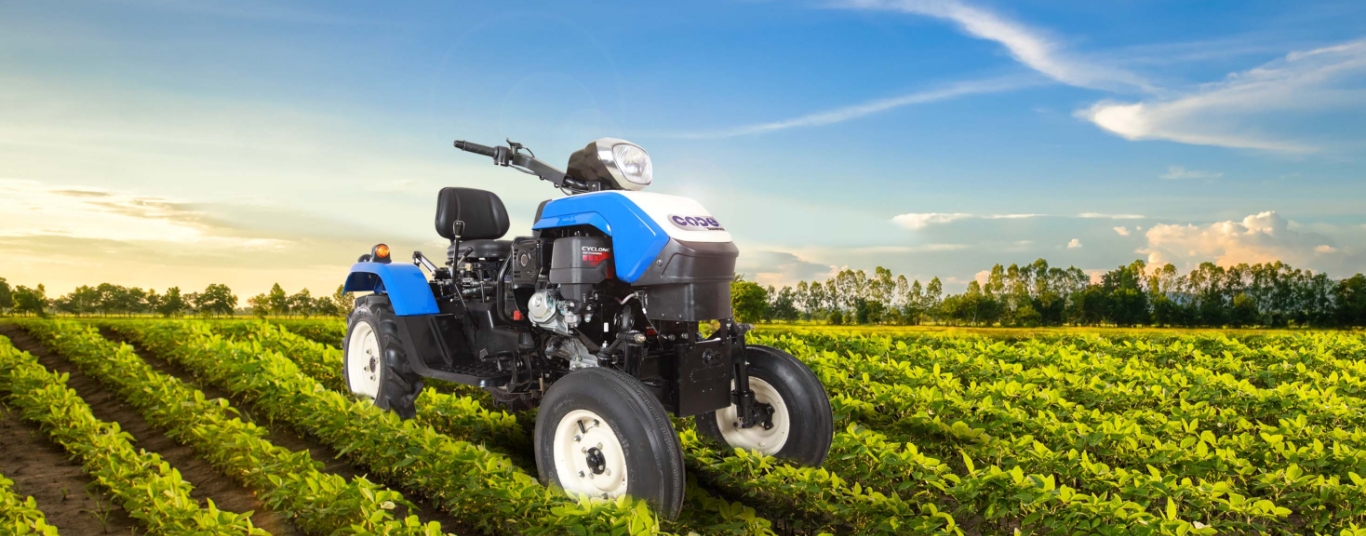

Code is a smart, multi-purpose equipment that helps farmers manage their farms most efficiently. Its compact size makes it ideal for crop care operations (like weeding and spraying) as it reduces the farmer’s dependence on labour drastically and significantly
reduces operational costs.
It, therefore, puts the farmer in complete charge of his land and life.
We have been told that we are creating a revolution in farming.
Perhaps.
But much, much more than that, we just want to revive the magic of farming. And we just want to transform lives through that magic. That will be our biggest triumph.
What makes Code a very farmer-centric product is that it is a massive innovation from the house of Swaraj, where the engineers are farmers themselves!
Swaraj Tractors was established in 1974 with a mission to be self-reliant and develop India’s first indigenous tractor. Today Swaraj is a rapidly growing company, has a wide portfolio of tractors and farm machinery, and stands
firmly amongst the top tractor brands in India.
| Engine | Power | 8.28 kW (11.1 HP) |
| Displacement | 389 cm3 | |
| Rated r/min | 3600 | |
| No. of cylinders | 1 | |
| Fuel type | Petrol (four stroke) | |
| Starting system | Recoil start only
OR Self start + Recoil start type |
|
| Air cleaner | Dry |
| Transmission & front axle | Gear box type | Sliding mesh |
| Clutch type | Single clutch, dry diaphragm | |
| Speed options | 6F + 3R | |
| Forward speed range | 1.9 km/h to 16.76 km/h | |
| Reverse speed range (km/hr) | 2.2 km/h to 5.7 km/h | |
| Front axle | Fixed | |
| Differential lock | Yes | |
| Steering | Mechanical |
| Machine | Ground clearance (std.) | 266 mm |
| Ground clearance (high configuration) | 554 mm | |
| Bi-directional | 180 degree | |
| Chassis | Ladder frame type |
| PTO & hydraulics | PTO | 1000 |
| Hydraulics | Two-Way Hydraulics | |
| Lift capacity | 220 kg @ hitch |
| Brakes | Brake | Oil-immersed brakes |
| Weight & dimensions | Front tyre | 101.6 mm x 228.6 mm (4x9) |
| Rear tyre | 152.4 mm x 355.6 (6x14) | |
| Height | 1180 mm | |
| Overall width | 890 mm | |
| Wheel base | 1463 mm | |
| Weight | 455 kg |
